Workflow Name: amset4createnode#

Constituent Services: AuthenticationService, RepositoryService, InitCreateContentWS, DateTimeWS#

Technical Notes#

Platform: GlassFishESB V2.1, NetBeans IDE 6.5 (including BPEL Designer, implementing WS-BPEL 2.0)
Java: 1.6.0_10; Java HotSpot(TM) Client VM 11.0-b15
System: Windows XP version 5.1 running on x86; Cp1252; en_GB (nb).

Alfresco Labs 3.1 Final running on remote server, 64-bit Java 1.6.0_13, Tomcat 6 on Red Hat Enterprise Linux 5.

Workflow Description#

CML: workflow within workflow

Alfresco uses XML in the form of the Content Manipulation Language (CML) to create statements that can be translated into executable form to perform repository tasks and workflows. The update operation of the Repository Service accepts a sequence of CML statements for execution. Hence, by stealth, RepositoryService.update() can do just about anything.

There is documentation for creating CML statements programmatically for a range of client technologies such as plain Java, Java Web services, PHP and JavaScript, for example. However, how the WSDL operation datatypes map to the Java API is not crystal clear and a bit of suck-it-and-see is required in terms of the SOAP request messages.

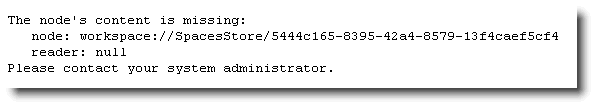

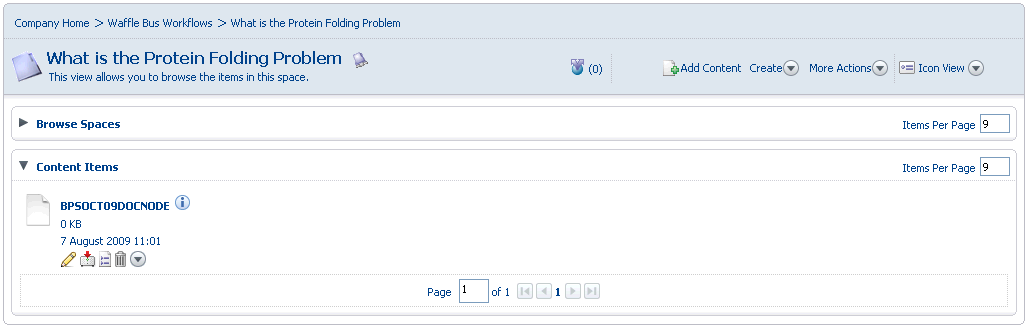

Creating content in Alfresco is a two-stage process. First a node is created in the repository, then content is written to it. To do the writing one can add a CML write statement to the one that creates the node, or else one can use the ContentService.write() operation. These options will be illustrated in the next couple of workflows. Here, the node is created only.

Because of the operation-for-all-seasons role played by RepositoryService.update(), the automatically generated input XML template is not brief, as shown below.

Code snippet 4.1. Generated SOAP Body for initialisation of CreateNode workflow

<soapenv:Envelope xsi:schemaLocation="http://schemas.xmlsoap.org/soap/envelope/ http://schemas.xmlsoap.org/soap/envelope/" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/" xmlns:init="http://j2ee.netbeans.org/wsdl/amset5createcontent1/InitCreateContentWS" xmlns:ns="http://www.alfresco.org/ws/cml/1.0" xmlns:ns1="http://www.alfresco.org/ws/model/content/1.0">
  <soapenv:Body>
    <init:InitCreateContentWSOperation>
      <username></username>
      <password></password>
      <updateRequest>
        <!--Zero or more repetitions:-->
        <ns:create>
          <!--Optional:-->
          <ns:id>CreateNode</ns:id>
          <!--Optional:-->
          <ns:parent>
            <!--Optional:-->
            <ns1:store>
              <!--Optional:-->
              <ns1:scheme></ns1:scheme>
              <!--Optional:-->
              <ns1:address></ns1:address>
            </ns1:store>
            <!--Optional:-->
            <ns1:uuid></ns1:uuid>
            <!--Optional:-->
            <ns1:path></ns1:path>
            <!--Optional:-->
            <ns1:associationType></ns1:associationType>
            <!--Optional:-->
            <ns1:childName></ns1:childName>
          </ns:parent>
          <!--Optional:-->
          <ns:parent_id></ns:parent_id>
          <!--Optional:-->
          <ns1:associationType></ns1:associationType>
          <!--Optional:-->
          <ns1:childName></ns1:childName>
          <!--Optional:-->
          <ns:type></ns:type>
          <!--Zero or more repetitions:-->
          <ns:property>
            <ns1:name></ns1:name>
            <ns1:isMultiValue></ns1:isMultiValue>
            <ns1:value></ns1:value>
            <!--Zero or more repetitions:-->
            <ns1:values></ns1:values>
          </ns:property>
        </ns:create>
        <!--Zero or more repetitions:-->
        <ns:addAspect>
          <ns:aspect></ns:aspect>
          <!--Zero or more repetitions:-->
          <ns:property>
            <ns1:name></ns1:name>
            <ns1:isMultiValue></ns1:isMultiValue>
            <ns1:value></ns1:value>
            <!--Zero or more repetitions:-->
            <ns1:values></ns1:values>
          </ns:property>
          <!--You have a CHOICE of the next 2 items at this level-->
          <!--Optional:-->
          <ns:where>
            <!--You have a CHOICE of the next 2 items at this level-->
            <!--Zero or more repetitions:-->
            <ns1:nodes>
              <!--Optional:-->
              <ns1:store>
                <!--Optional:-->
                <ns1:scheme></ns1:scheme>
                <!--Optional:-->
                <ns1:address></ns1:address>
              </ns1:store>
              <!--Optional:-->
              <ns1:uuid></ns1:uuid>
              <!--Optional:-->
              <ns1:path></ns1:path>
            </ns1:nodes>
            <!--Optional:-->
            <ns1:store>
              <!--Optional:-->
              <ns1:scheme></ns1:scheme>
              <!--Optional:-->
              <ns1:address></ns1:address>
            </ns1:store>
            <!--Optional:-->
            <ns1:query>
              <ns1:language></ns1:language>
              <ns1:statement></ns1:statement>
            </ns1:query>
          </ns:where>
          <!--Optional:-->
          <ns:where_id></ns:where_id>
        </ns:addAspect>
        <!--Zero or more repetitions:-->
        <ns:removeAspect>
          <ns:aspect></ns:aspect>
          <!--You have a CHOICE of the next 2 items at this level-->
          <!--Optional:-->
          <ns:where>
            <!--You have a CHOICE of the next 2 items at this level-->
            <!--Zero or more repetitions:-->
            <ns1:nodes>
              <!--Optional:-->
              <ns1:store>
                <!--Optional:-->
                <ns1:scheme></ns1:scheme>
                <!--Optional:-->
                <ns1:address></ns1:address>
              </ns1:store>
              <!--Optional:-->
              <ns1:uuid></ns1:uuid>
              <!--Optional:-->
              <ns1:path></ns1:path>
            </ns1:nodes>
            <!--Optional:-->
            <ns1:store>
              <!--Optional:-->
              <ns1:scheme></ns1:scheme>
              <!--Optional:-->
              <ns1:address></ns1:address>
            </ns1:store>
            <!--Optional:-->
            <ns1:query>
              <ns1:language></ns1:language>
              <ns1:statement></ns1:statement>
            </ns1:query>
          </ns:where>
          <!--Optional:-->
          <ns:where_id></ns:where_id>
        </ns:removeAspect>
        <!--Zero or more repetitions:-->
        <ns:update>
          <!--1 or more repetitions:-->
          <ns:property>
            <ns1:name></ns1:name>
            <ns1:isMultiValue></ns1:isMultiValue>
            <ns1:value></ns1:value>
            <!--Zero or more repetitions:-->
            <ns1:values></ns1:values>
          </ns:property>
          <!--You have a CHOICE of the next 2 items at this level-->
          <!--Optional:-->
          <ns:where>
            <!--You have a CHOICE of the next 2 items at this level-->
            <!--Zero or more repetitions:-->
            <ns1:nodes>
              <!--Optional:-->
              <ns1:store>
                <!--Optional:-->
                <ns1:scheme></ns1:scheme>
                <!--Optional:-->
                <ns1:address></ns1:address>
              </ns1:store>
              <!--Optional:-->
              <ns1:uuid></ns1:uuid>
              <!--Optional:-->
              <ns1:path></ns1:path>
            </ns1:nodes>
            <!--Optional:-->
            <ns1:store>
              <!--Optional:-->
              <ns1:scheme></ns1:scheme>
              <!--Optional:-->
              <ns1:address></ns1:address>
            </ns1:store>
            <!--Optional:-->
            <ns1:query>
              <ns1:language></ns1:language>
              <ns1:statement></ns1:statement>
            </ns1:query>
          </ns:where>
          <!--Optional:-->
          <ns:where_id></ns:where_id>
        </ns:update>
        <!--Zero or more repetitions:-->
        <ns:writeContent>
          <ns:property></ns:property>
          <ns:content></ns:content>
          <ns:format>
            <ns1:mimetype></ns1:mimetype>
            <!--Optional:-->
            <ns1:encoding></ns1:encoding>
          </ns:format>
          <!--You have a CHOICE of the next 2 items at this level-->
          <!--Optional:-->
          <ns:where>
            <!--You have a CHOICE of the next 2 items at this level-->
            <!--Zero or more repetitions:-->
            <ns1:nodes>
              <!--Optional:-->
              <ns1:store>
                <!--Optional:-->
                <ns1:scheme></ns1:scheme>
                <!--Optional:-->
                <ns1:address></ns1:address>
              </ns1:store>
              <!--Optional:-->
              <ns1:uuid></ns1:uuid>
              <!--Optional:-->
              <ns1:path></ns1:path>
            </ns1:nodes>
            <!--Optional:-->
            <ns1:store>
              <!--Optional:-->
              <ns1:scheme></ns1:scheme>
              <!--Optional:-->
              <ns1:address></ns1:address>
            </ns1:store>
            <!--Optional:-->
            <ns1:query>
              <ns1:language></ns1:language>
              <ns1:statement></ns1:statement>
            </ns1:query>
          </ns:where>
          <!--Optional:-->
          <ns:where_id></ns:where_id>
        </ns:writeContent>
        <!--Zero or more repetitions:-->
        <ns:delete>
          <ns:where>
            <!--You have a CHOICE of the next 2 items at this level-->
            <!--Zero or more repetitions:-->
            <ns1:nodes>
              <!--Optional:-->
              <ns1:store>
                <!--Optional:-->
                <ns1:scheme></ns1:scheme>
                <!--Optional:-->
                <ns1:address></ns1:address>
              </ns1:store>
              <!--Optional:-->
              <ns1:uuid></ns1:uuid>
              <!--Optional:-->
              <ns1:path></ns1:path>
            </ns1:nodes>
            <!--Optional:-->
            <ns1:store>
              <!--Optional:-->
              <ns1:scheme></ns1:scheme>
              <!--Optional:-->
              <ns1:address></ns1:address>
            </ns1:store>
            <!--Optional:-->
            <ns1:query>
              <ns1:language></ns1:language>
              <ns1:statement></ns1:statement>
            </ns1:query>
          </ns:where>
        </ns:delete>
        <!--Zero or more repetitions:-->
        <ns:move>
          <!--You have a CHOICE of the next 2 items at this level-->
          <!--Optional:-->
          <ns:to>
            <!--Optional:-->
            <ns1:store>
              <!--Optional:-->
              <ns1:scheme></ns1:scheme>
              <!--Optional:-->
              <ns1:address></ns1:address>
            </ns1:store>
            <!--Optional:-->
            <ns1:uuid></ns1:uuid>
            <!--Optional:-->
            <ns1:path></ns1:path>
            <!--Optional:-->
            <ns1:associationType></ns1:associationType>
            <!--Optional:-->
            <ns1:childName></ns1:childName>
          </ns:to>
          <!--Optional:-->
          <ns:to_id></ns:to_id>
          <!--Optional:-->
          <ns1:associationType></ns1:associationType>
          <!--Optional:-->
          <ns1:childName></ns1:childName>
          <!--You have a CHOICE of the next 2 items at this level-->
          <!--Optional:-->
          <ns:where>
            <!--You have a CHOICE of the next 2 items at this level-->
            <!--Zero or more repetitions:-->
            <ns1:nodes>
              <!--Optional:-->
              <ns1:store>
                <!--Optional:-->
                <ns1:scheme></ns1:scheme>
                <!--Optional:-->
                <ns1:address></ns1:address>
              </ns1:store>
              <!--Optional:-->
              <ns1:uuid></ns1:uuid>
              <!--Optional:-->
              <ns1:path></ns1:path>
            </ns1:nodes>
            <!--Optional:-->
            <ns1:store>
              <!--Optional:-->
              <ns1:scheme></ns1:scheme>
              <!--Optional:-->
              <ns1:address></ns1:address>
            </ns1:store>
            <!--Optional:-->
            <ns1:query>
              <ns1:language></ns1:language>
              <ns1:statement></ns1:statement>
            </ns1:query>
          </ns:where>
          <!--Optional:-->
          <ns:where_id></ns:where_id>
        </ns:move>
        <!--Zero or more repetitions:-->
        <ns:copy>
          <!--You have a CHOICE of the next 2 items at this level-->
          <!--Optional:-->
          <ns:to>
            <!--Optional:-->
            <ns1:store>
              <!--Optional:-->
              <ns1:scheme></ns1:scheme>
              <!--Optional:-->
              <ns1:address></ns1:address>
            </ns1:store>
            <!--Optional:-->
            <ns1:uuid></ns1:uuid>
            <!--Optional:-->
            <ns1:path></ns1:path>
            <!--Optional:-->
            <ns1:associationType></ns1:associationType>
            <!--Optional:-->
            <ns1:childName></ns1:childName>
          </ns:to>
          <!--Optional:-->
          <ns:to_id></ns:to_id>
          <!--Optional:-->
          <ns1:associationType></ns1:associationType>
          <!--Optional:-->
          <ns1:childName></ns1:childName>
          <!--You have a CHOICE of the next 2 items at this level-->
          <!--Optional:-->
          <ns:where>
            <!--You have a CHOICE of the next 2 items at this level-->
            <!--Zero or more repetitions:-->
            <ns1:nodes>
              <!--Optional:-->
              <ns1:store>
                <!--Optional:-->
                <ns1:scheme></ns1:scheme>
                <!--Optional:-->
                <ns1:address></ns1:address>
              </ns1:store>
              <!--Optional:-->
              <ns1:uuid></ns1:uuid>
              <!--Optional:-->
              <ns1:path></ns1:path>
            </ns1:nodes>
            <!--Optional:-->
            <ns1:store>
              <!--Optional:-->
              <ns1:scheme></ns1:scheme>
              <!--Optional:-->
              <ns1:address></ns1:address>
            </ns1:store>
            <!--Optional:-->
            <ns1:query>
              <ns1:language></ns1:language>
              <ns1:statement></ns1:statement>
            </ns1:query>
          </ns:where>
          <!--Optional:-->
          <ns:where_id></ns:where_id>
          <!--Optional:-->
          <ns:children></ns:children>
        </ns:copy>
        <!--Zero or more repetitions:-->
        <ns:addChild>
          <!--You have a CHOICE of the next 2 items at this level-->
          <!--Optional:-->
          <ns:to>
            <!--Optional:-->
            <ns1:store>
              <!--Optional:-->
              <ns1:scheme></ns1:scheme>
              <!--Optional:-->
              <ns1:address></ns1:address>
            </ns1:store>
            <!--Optional:-->
            <ns1:uuid></ns1:uuid>
            <!--Optional:-->
            <ns1:path></ns1:path>
            <!--Optional:-->
            <ns1:associationType></ns1:associationType>
            <!--Optional:-->
            <ns1:childName></ns1:childName>
          </ns:to>
          <!--Optional:-->
          <ns:to_id></ns:to_id>
          <!--Optional:-->
          <ns1:associationType></ns1:associationType>
          <!--Optional:-->
          <ns1:childName></ns1:childName>
          <!--You have a CHOICE of the next 2 items at this level-->
          <!--Optional:-->
          <ns:where>
            <!--You have a CHOICE of the next 2 items at this level-->
            <!--Zero or more repetitions:-->
            <ns1:nodes>
              <!--Optional:-->
              <ns1:store>
                <!--Optional:-->
                <ns1:scheme></ns1:scheme>
                <!--Optional:-->
                <ns1:address></ns1:address>
              </ns1:store>
              <!--Optional:-->
              <ns1:uuid></ns1:uuid>
              <!--Optional:-->
              <ns1:path></ns1:path>
            </ns1:nodes>
            <!--Optional:-->
            <ns1:store>
              <!--Optional:-->
              <ns1:scheme></ns1:scheme>
              <!--Optional:-->
              <ns1:address></ns1:address>
            </ns1:store>
            <!--Optional:-->
            <ns1:query>
              <ns1:language></ns1:language>
              <ns1:statement></ns1:statement>
            </ns1:query>
          </ns:where>
          <!--Optional:-->
          <ns:where_id></ns:where_id>
        </ns:addChild>
        <!--Zero or more repetitions:-->
        <ns:removeChild>
          <!--You have a CHOICE of the next 2 items at this level-->
          <!--Optional:-->
          <ns:from>
            <!--Optional:-->
            <ns1:store>
              <!--Optional:-->
              <ns1:scheme></ns1:scheme>
              <!--Optional:-->
              <ns1:address></ns1:address>
            </ns1:store>
            <!--Optional:-->
            <ns1:uuid></ns1:uuid>
            <!--Optional:-->
            <ns1:path></ns1:path>
          </ns:from>
          <!--Optional:-->
          <ns:from_id></ns:from_id>
          <!--You have a CHOICE of the next 2 items at this level-->
          <!--Optional:-->
          <ns:where>
            <!--You have a CHOICE of the next 2 items at this level-->
            <!--Zero or more repetitions:-->
            <ns1:nodes>
              <!--Optional:-->
              <ns1:store>
                <!--Optional:-->
                <ns1:scheme></ns1:scheme>
                <!--Optional:-->
                <ns1:address></ns1:address>
              </ns1:store>
              <!--Optional:-->
              <ns1:uuid></ns1:uuid>
              <!--Optional:-->
              <ns1:path></ns1:path>
            </ns1:nodes>
            <!--Optional:-->
            <ns1:store>
              <!--Optional:-->
              <ns1:scheme></ns1:scheme>
              <!--Optional:-->
              <ns1:address></ns1:address>
            </ns1:store>
            <!--Optional:-->
            <ns1:query>
              <ns1:language></ns1:language>
              <ns1:statement></ns1:statement>
            </ns1:query>
          </ns:where>
          <!--Optional:-->
          <ns:where_id></ns:where_id>
        </ns:removeChild>
        <!--Zero or more repetitions:-->
        <ns:createAssociation>
          <!--You have a CHOICE of the next 2 items at this level-->
          <!--Optional:-->
          <ns:from>
            <!--You have a CHOICE of the next 2 items at this level-->
            <!--Zero or more repetitions:-->
            <ns1:nodes>
              <!--Optional:-->
              <ns1:store>
                <!--Optional:-->
                <ns1:scheme></ns1:scheme>
                <!--Optional:-->
                <ns1:address></ns1:address>
              </ns1:store>
              <!--Optional:-->
              <ns1:uuid></ns1:uuid>
              <!--Optional:-->
              <ns1:path></ns1:path>
            </ns1:nodes>
            <!--Optional:-->
            <ns1:store>
              <!--Optional:-->
              <ns1:scheme></ns1:scheme>
              <!--Optional:-->
              <ns1:address></ns1:address>
            </ns1:store>
            <!--Optional:-->
            <ns1:query>
              <ns1:language></ns1:language>
              <ns1:statement></ns1:statement>
            </ns1:query>
          </ns:from>
          <!--Optional:-->
          <ns:from_id></ns:from_id>
          <!--You have a CHOICE of the next 2 items at this level-->
          <!--Optional:-->
          <ns:to>
            <!--You have a CHOICE of the next 2 items at this level-->
            <!--Zero or more repetitions:-->
            <ns1:nodes>
              <!--Optional:-->
              <ns1:store>
                <!--Optional:-->
                <ns1:scheme></ns1:scheme>
                <!--Optional:-->
                <ns1:address></ns1:address>
              </ns1:store>
              <!--Optional:-->
              <ns1:uuid></ns1:uuid>
              <!--Optional:-->
              <ns1:path></ns1:path>
            </ns1:nodes>
            <!--Optional:-->
            <ns1:store>
              <!--Optional:-->
              <ns1:scheme></ns1:scheme>
              <!--Optional:-->
              <ns1:address></ns1:address>
            </ns1:store>
            <!--Optional:-->
            <ns1:query>
              <ns1:language></ns1:language>
              <ns1:statement></ns1:statement>
            </ns1:query>
          </ns:to>
          <!--Optional:-->
          <ns:to_id></ns:to_id>
          <ns:association></ns:association>
        </ns:createAssociation>
        <!--Zero or more repetitions:-->
        <ns:removeAssociation>
          <!--You have a CHOICE of the next 2 items at this level-->
          <!--Optional:-->
          <ns:from>
            <!--You have a CHOICE of the next 2 items at this level-->
            <!--Zero or more repetitions:-->
            <ns1:nodes>
              <!--Optional:-->
              <ns1:store>
                <!--Optional:-->
                <ns1:scheme></ns1:scheme>
                <!--Optional:-->
                <ns1:address></ns1:address>
              </ns1:store>
              <!--Optional:-->
              <ns1:uuid></ns1:uuid>
              <!--Optional:-->
              <ns1:path></ns1:path>
            </ns1:nodes>
            <!--Optional:-->
            <ns1:store>
              <!--Optional:-->
              <ns1:scheme></ns1:scheme>
              <!--Optional:-->
              <ns1:address></ns1:address>
            </ns1:store>
            <!--Optional:-->
            <ns1:query>
              <ns1:language></ns1:language>
              <ns1:statement></ns1:statement>
            </ns1:query>
          </ns:from>
          <!--Optional:-->
          <ns:from_id></ns:from_id>
          <!--You have a CHOICE of the next 2 items at this level-->
          <!--Optional:-->
          <ns:to>
            <!--You have a CHOICE of the next 2 items at this level-->
            <!--Zero or more repetitions:-->
            <ns1:nodes>
              <!--Optional:-->
              <ns1:store>
                <!--Optional:-->
                <ns1:scheme></ns1:scheme>
                <!--Optional:-->
                <ns1:address></ns1:address>
              </ns1:store>
              <!--Optional:-->
              <ns1:uuid></ns1:uuid>
              <!--Optional:-->
              <ns1:path></ns1:path>
            </ns1:nodes>
            <!--Optional:-->
            <ns1:store>
              <!--Optional:-->
              <ns1:scheme></ns1:scheme>
              <!--Optional:-->
              <ns1:address></ns1:address>
            </ns1:store>
            <!--Optional:-->
            <ns1:query>
              <ns1:language></ns1:language>
              <ns1:statement></ns1:statement>
            </ns1:query>
          </ns:to>
          <!--Optional:-->
          <ns:to_id></ns:to_id>
          <ns:association></ns:association>
        </ns:removeAssociation>
      </updateRequest>
    </init:InitCreateContentWSOperation>
  </soapenv:Body>
</soapenv:Envelope>

To make it a bit easier to sort out the binding it was useful to introduce a schema with a reduced datatype for the RepositoryService.update() operation.

Code snippet 4.2. Reduced Datatype for RepositoryService Update Request

<schema elementFormDefault="qualified"
targetNamespace="http://j2ee.netbeans.org/wsdl/amset5createcontent1/InitCreateContentWS/repodata"
xmlns:tns="http://j2ee.netbeans.org/wsdl/amset5createcontent1/InitCreateContentWS/repodata"
xmlns:cml="http://www.alfresco.org/ws/cml/1.0"
xmlns:cms="http://www.alfresco.org/ws/model/content/1.0"
xmlns="http://www.w3.org/2001/XMLSchema"
xmlns:xsd="http://www.w3.org/2001/XMLSchema">

            <xsd:import namespace="http://www.alfresco.org/ws/headers/1.0" schemaLocation="headers.xsd"/>
            <xsd:import namespace="http://www.alfresco.org/ws/cml/1.0" schemaLocation="cml.xsd"/>
            <xsd:import namespace="http://www.alfresco.org/ws/model/content/1.0" schemaLocation="types.xsd"/>

            <element name="update">
                <complexType>
                    <sequence>
                        <element name="statements" type="cml:CML"/>
                    </sequence>
                </complexType>
            </element>

            <element name="updateResponse">
                <complexType>
                    <sequence>
                        <element maxOccurs="unbounded" minOccurs="0" name="updateReturn" type="tns:UpdateResult"/>
                    </sequence>
                </complexType>
            </element>

            <complexType name="UpdateResult">
                <sequence>
                    <element name="statement" type="xsd:string"/>
                    <element name="updateCount" nillable="true" type="cms:ResultSet"/>
                    <element name="sourceId" nillable="true" type="xsd:string"/>
                    <element name="source" nillable="true" type="cms:Reference"/>
                    <element name="destination" nillable="true" type="cms:Reference"/>
                </sequence>
            </complexType>

            <element name="UpdateResult" type="tns:UpdateResult"/>

        </schema>

This provides a more sympathetic SOAP input. The BPEL workflow is initiated using the following SOAP message.

Code snippet 4.3. Input SOAP Message for InitCreateContentWS

<soapenv:Envelope xsi:schemaLocation="http://schemas.xmlsoap.org/soap/envelope/ http://schemas.xmlsoap.org/soap/envelope/" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/" xmlns:init="http://j2ee.netbeans.org/wsdl/amset5createcontent1/InitCreateContentWS" xmlns:ns="http://www.alfresco.org/ws/cml/1.0" xmlns:ns1="http://www.alfresco.org/ws/model/content/1.0">
  <soapenv:Body>
    <init:InitCreateContentWSOperation>
      <username>admin</username>
      <password>adminPassword</password>
      <updateRequest>
        <!--Zero or more repetitions:-->
        <ns:create>
          <!--Optional:-->
          <ns:id>CreateNode</ns:id>
          <!--Optional:-->
          <ns:parent>
            <!--Optional:-->
            <ns1:store>
              <!--Optional:-->
              <ns1:scheme>workspace</ns1:scheme>
              <!--Optional:-->
              <ns1:address>SpacesStore</ns1:address>
            </ns1:store>
            <!--Optional:-->
            <ns1:uuid>a390583c-1704-4fb5-955f-826d5a9f8563</ns1:uuid>
            <!--Optional:-->
            <ns1:path></ns1:path>
            <!--Optional:-->
            <ns1:associationType>{http://www.alfresco.org/model/content/1.0}contains</ns1:associationType>
            <!--Optional:-->
            <ns1:childName>{http://www.alfresco.org/model/content/1.0}contains</ns1:childName>
          </ns:parent>
          <ns:type>{http://www.alfresco.org/model/content/1.0}content</ns:type>
          <!--Zero or more repetitions:-->
          <ns:property>
            <ns1:name>{http://www.alfresco.org/model/content/1.0}name</ns1:name>
            <ns1:isMultiValue>false</ns1:isMultiValue>
            <ns1:value>BPSOCT10DOCNODE</ns1:value>
            <!--Zero or more repetitions:-->
            <ns1:values></ns1:values>
          </ns:property>
        </ns:create>
      </updateRequest>
    </init:InitCreateContentWSOperation>
  </soapenv:Body>
</soapenv:Envelope>

This results in the following SOAP message going to the RepositoryService.update() operation.

According to the schema, it looks like the unique identifier for the parent folder would be sufficient to identify it, but the schema and addess are required also.

Code snippet 4.4. Input SOAP Message for RepositoryService.update()

<?xml version="1.0" encoding="UTF-8"?>
<SOAP-ENV:Envelope xmlns:SOAP-ENV="http://schemas.xmlsoap.org/soap/envelope/">
    <SOAP-ENV:Header>
        <Security xmlns="http://docs.oasis-open.org/wss/2004/01/oasis-200401-wss-wssecurity-secext-1.0.xsd">
            <wsu:Timestamp xmlns:wsu="http://docs.oasis-open.org/wss/2004/01/oasis-200401-wss-wssecurity-utility-1.0.xsd">
                <wsu:Created>2009-08-07T10:39:07.88+00:00</wsu:Created>
                <wsu:Expires>2009-08-07T10:43:07.00+00:00</wsu:Expires>
            </wsu:Timestamp>
            <UsernameToken>
                <Username>admin</Username>
                <Password Id="" Type="http://docs.oasis-open.org/wss/2004/01/oasis-200401-wss-username-token-profile-1.0#PasswordText">TICKET_ffbe9abe434075e30034515ade00ff6038ad4b7a</Password>
            </UsernameToken>
        </Security>
    </SOAP-ENV:Header>
    <SOAP-ENV:Body>
        <update
            xmlns="http://www.alfresco.org/ws/service/repository/1.0" xmlns:msgns="http://www.alfresco.org/ws/service/repository/1.0">
            <ns0:statements
                xmlns:init="http://j2ee.netbeans.org/wsdl/amset5createcontent1/InitCreateContentWS"
                xmlns:msgns="http://j2ee.netbeans.org/wsdl/amset5createcontent1/InitCreateContentWS"
                xmlns:ns="http://www.alfresco.org/ws/cml/1.0"
                xmlns:ns0="http://www.alfresco.org/ws/service/repository/1.0" xmlns:ns1="http://www.alfresco.org/ws/model/content/1.0">
                <ns:create>
                    <ns:id>CreateNode</ns:id>
                    <ns:parent>
                        <ns1:store>
                            <ns1:scheme>workspace</ns1:scheme>
                            <ns1:address>SpacesStore</ns1:address>
                        </ns1:store>
                        <ns1:uuid>a390583c-1704-4fb5-955f-826d5a9f8563</ns1:uuid>
                        <ns1:path/>
                        <ns1:associationType>{http://www.alfresco.org/model/content/1.0}contains</ns1:associationType>
                        <ns1:childName>{http://www.alfresco.org/model/content/1.0}contains</ns1:childName>
                    </ns:parent>
                    <ns:type>{http://www.alfresco.org/model/content/1.0}content</ns:type>
                    <ns:property>
                        <ns1:name>{http://www.alfresco.org/model/content/1.0}name</ns1:name>
                        <ns1:isMultiValue>false</ns1:isMultiValue>
                        <ns1:value>BPSOCT10DOCNODE</ns1:value>
                        <ns1:values/>
                    </ns:property>
                </ns:create>
            </ns0:statements>
        </update>
    </SOAP-ENV:Body>
</SOAP-ENV:Envelope>

This creates a node of name BPSOCT10DOCNODE in the parent folder identified by workspace://SpacesStore/a390583c-1704-4fb5-955f-826d5a9f8563 which is in the What is the Protein Folding Problem Folder. The identifier for the new node is returned in the SOAP response.

Code snippet 4.5. RepositoryService.update() SOAP response

<?xml version="1.0" encoding="UTF-8"?>
<soapenv:Envelope
    xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/"
    xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance">
    <soapenv:Body>
        <updateResponse xmlns="http://www.alfresco.org/ws/service/repository/1.0">
            <updateReturn>
                <statement>create</statement>
                <updateCount xsi:nil="true"/>
                <sourceId>CreateNode</sourceId>
                <source xsi:nil="true"/>
                <destination>
                    <ns1:store xmlns:ns1="http://www.alfresco.org/ws/model/content/1.0">
                        <ns1:scheme>workspace</ns1:scheme>
                        <ns1:address>SpacesStore</ns1:address>
                    </ns1:store>
                    <ns2:uuid xmlns:ns2="http://www.alfresco.org/ws/model/content/1.0">5444c165-8395-42a4-8579-13f4caef5cf4</ns2:uuid>
                    <ns3:path xmlns:ns3="http://www.alfresco.org/ws/model/content/1.0">/app:company_home/cm:Waffle_x0020_Bus_x0020_Workflows/cm:What_x0020_is_x0020_the_x0020_Protein_x0020_Folding_x0020_Problem/cm:contains</ns3:path>
                </destination>
            </updateReturn>
        </updateResponse>
    </soapenv:Body>
</soapenv:Envelope>

This node will appear in the Alfresco web application:

Figure 4.1. New node represented in Alfresco Web application

Note that if the node is named using a filename format that Alfresco recognises like file.txt or file.html, then the appropriate icon is displayed. The Web application isn't happy with an empty content node, though, and if the associated link is clicked then the following message is returned.

Figure 4.2. No content node error message

Add new attachment

Only authorized users are allowed to upload new attachments.

List of attachments

Kind Attachment Name Size Version Date Modified Author Change note

png
createnode.png 13.2 kB 1 07-Aug-2009 16:27 clayton

png
nocontentmessage.png 3.3 kB 1 07-Aug-2009 16:38 clayton

Kind	Attachment Name	Size	Version	Date Modified	Author	Change note
png	createnode.png	13.2 kB	1	07-Aug-2009 16:27	clayton
png	nocontentmessage.png	3.3 kB	1	07-Aug-2009 16:38	clayton

« This page (revision-) was last changed on 06-Sep-2009 13:34 by clayton

G’day (anonymous guest) My Prefs

View Page Source

Home

Overview

Project Team

Why Alfresco?

The Alfresco Repository Structure (JSR170)

Technology Overview

BPEL

Getting Started

Alfresco Web services

Web Service Security

Workflows

Learning Design

Error Messages (Known and Loved)

Guanxi Shibboleth

SWORD

FAQ

Documentation

Presentations

Downloads

Bibliography

External Links

AMSeT at SourceForge

AMSeT Blog

JISC AMSeT Site

Alfresco

JSPWiki v2.8.1
